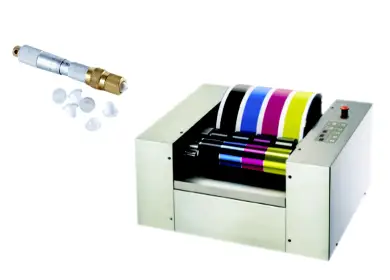

Multi-section Ink Proofing Press
Multi-section Ink Proofing Press is the newest product used for the testing the adaptability of ink printing.Compared with other types, it has many features as below:
- Distribute ink automatically and time and speed for distributing ink are adjustable.
- Used for lithography printing,letterpress printing or UV ink, UV flexographic ink
- Printing pressure and printing speed can be set according to the user’s requirments.
- Can print different substrates,such as book paper, art paper,matt art paper, gray paperboard,film and tinplate etc.
- High repeatability and reproducibility.
- High quality, easy to clean and maintenance, simpe and safe for operation.
Main Technical Parameters
- Effective size of coloured strips 106mm 215mm two colours 106mm 215mm/45mm×215mm three colours 45mm 215mm four colours
- Printing Rubber Common rubber or special rubber for UV ink either-or
- Speed of distributing ink There are three different speeds 550,700,900 rpm on the control board.Operator also can dismantle shell of machine to do stepless speed regulation.
- Printing speed There are three different speeds 10,16,22 rpm on the control board.Operator also can dismantle shell of machine to do stepless speed regulation.
- Distributing ink time 1 120 second (adjustable)
- Print pressure Can be adjusted precisely externally according to the substrate thickness 0 800g
- Distributing ink pressure Can be adjusted precisely externally according to the rubber using status
- Power supply AC 220V/50HZ Power 250W saving electrical power design
- Dimensions of machine 525 430 280mm
- Weight 75KG
