Versatile Sand-Milling Dispersing-agitator

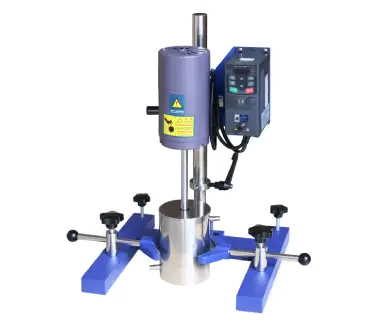

BGD 750 Series Versatile Sand-Milling Dispersing-agitator is a new product designed by our company. It is equipped with two sand-milling discs, two dispersing blades, and a double-layer stainless steel container. With only one machine, the operator can finish tasks such as sand-milling, high-speed dispersing, and mixing. Furthermore, the electric lift design is very convenient for female operators.
Features:
- High-quality squirrel-cage motor and use frequency converter to adjust working speed.
- Direct display shows revolutions through the screen of the frequency converter installed on the machine.
- No carbon brush, does not produce any flame when working.
- Lower noise, bigger torque and wider adjustable speed.
- Main parts are made up of stainless steel, with perfect corrosion resistance.
- Inlet and outlet of cooling water are equipped with fast joints, convenient for operators to install or remove quickly.
- Container is produced by a whole special mold, and bottom is arc structure, can be cleaned completely. Very convenient for operators to do different samples.
- Standard configuration: Two or four (only for 550W/750W) different dispersing blades, two different size sand-milling blades, and a stainless steel double jacket container.
- BGD 750/1 & BGD 750/2 have lifting lever marked with scale, which are convenient to adjust the distance of the dispersing blade to container bottom.
- Power Supply: 220V 50Hz
Ordering Information :
| Model | Motor Power | Speed (r/min) | Container Capacity | Lift Distance | Lift System | Dispersing blades | Sand-Mill blades | Overall Size (W × D × H) |
|---|---|---|---|---|---|---|---|---|
| BGD 750/1 | 550W | 0~7,500 | 1.25 L | 240 mm | Spring lift by hand | 50mm & 60mm | 50mm & 60mm | 475 × 430 × 560 ~ 800 |
| BGD 750/2 | 550W | 0-6,000 | 1.25 L | 260 mm | Spring lift by hand | 80mm & 60mm | 80mm & 60mm | 475 × 430 × 635 ~ 895 |
| BGD 750/3 | 1,100W | 0-6,000 | 3 L | 320 mm | Electric | 80mm & 80mm | 80mm & 80mm | 675 × 570 × 1180 |
| BGD 750/4 | 1,500W | 0-5000 | 5 L | 520 mm | Electric | 100mm & 120mm | 100mm & 130mm | 675 × 570 × 1180 |
| BGD 750/5 | 2,200W | 0-4,000 | 1.25 L | 300 mm | Spring lift by hand | 50mm & 60mm | 50mm & 60mm | 700 × 720 × 1300 |
| BGD 751/1 | 550W | 0-7,500 | 1.25L | 300mm | Electric | 50mm & 60mm | 50mm & 60mm | 610 × 340 × 860 |
| BGD 751/2 | 750W | 0-6,000 | 1.25L | 300mm | Electric | 50mm & 60mm | 50mm & 60mm | 610 × 340 × 860 |
