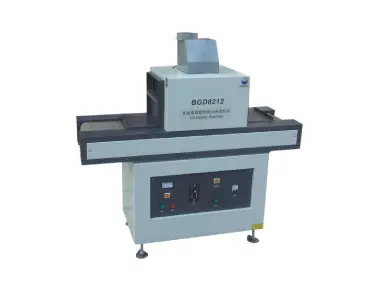

UV Solidify Machine
UV Solidify Machine is used widely for UV paint, UV glue, UV inks, UV gloss ink. It is small, economic and practical as it’s selling point, suitable for small batches, trial production, or used in small enterprises. It is also welcomed in painting, glue manufacturers for research and development.
- Portable and small with one UV lamp installed, which is suitable for operation line and also handwork.
- Easy to operate; one of mass production models, components selected are standardized: simple operation and maintenance with low cost.
- Reasonable exhaust design with effective cooling system.
- Speed can be set free within the effective scope.
Main Technical Parameters :
| Parameters | BGD 8212 | BGD 8213 | BGD 8313 | BGD 8223 | BGD 8323 |
|---|---|---|---|---|---|
| Power supply | 220VAC/50HZ | 380VAC/50HZ | |||
| Total power | 2.2kW | 3.5kW | 5.0kW | 7.2kW | |
| UV lamp Power | 2kW | 3kW | 2kW | 3kW | |
| Number of Lamp | 1 pc | 2 pcs | |||
| Speed range | 0~10 m/min | ||||
| Belt Material | Stainless steel or TEFLON | ||||
| Belt Width | 200mm | 300mm | 300mm | 300mm | 300mm |
| Entrance Height | 0~100mm | ||||
| Cooling System | Air Cooling | ||||
| Main Wavelength | 365 nm | ||||
| Lamp Life | 600 hours, over 75% intensity | ||||
| UV lamp type/Unit power | High-pressure mercury lamp - 1.00W/m | ||||
| Overall size (L. x W. x H.) | 1250 x 440 x 1200 | 1250 x 540 x 1200 | 1500 x 600 x 1200 | 1800 x 600 x 1200 | |
| Net Weight (kg) | 80 | 90 | 150 | 180 | 250 |
