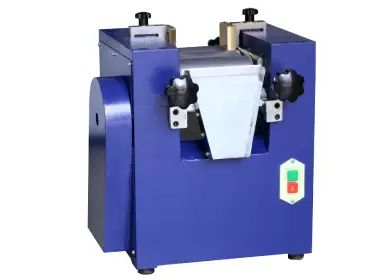

Three Roller Grinder
GD 770 series Three Rollers Grinder is widely used in paste materials including inks, paint, pigment, soap, artificial leather, plastics, lubricant grease, chocolate, and so on. Especially for high viscosity and fineness material. The mill roller is made of high hardness alloy and anti-abrasion, also equipped with a cooling device for continuous operation.
Main Technical Parameters :
| Ordering Information | BGD 770/1 | BGD 770/2 | BGD 770/3 | BGD 770/4 | BGD 770/5 |
|---|---|---|---|---|---|
| Roller diameter (mm) | 65 | 100 | 150 | 200 | 260 |
| Working length (mm) | 125 | 250 | 300 | 500 | 675 |
| Speed (R.p.m.) | - | - | - | - | - |
| - Slow | 26 | 28 | 34 | 29 | 23 |
| - Middle | 70 | 66 | 78 | 55 | 64 |
| - Fast | 145 | 152 | 181 | 153 | 183 |
| Motor Power (kW) | 0.55 | 1.5 | 2.2 | 4.0 | 7.5 |
| Capacity (L) | 5 | 30 | 60 | 100 | 150 |
| Overall size (mm) | 410x400x450 | 680x600x770 | 830x830x930 | 1180x120x980 | 1680x1320x1150 |
| Weight (kg) | 80 | 300 | 500 | 800 | 2100 |
