Temperature Tracker is a user-friendly device. It takes just a few minutes to learn how the system works. It's excellent suited for industrial oven and laboratory oven temperature profiling. Mandatory test in Qualicoat, QIB and GSB accredited laboratories.

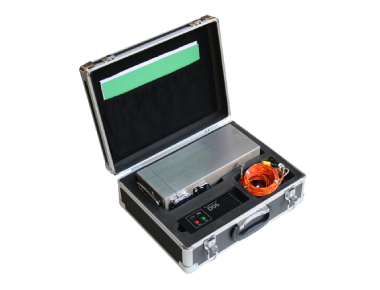

Temperature Tracker is mainly made up of:
- Oven Datalogger: The heart of the temperature tracker. It is designed to measure temperature and store them for a specified amount of time. This instrument measures continuously but only stores readings at certain intervals defined by the operator. The maximum recording period depends on the number of sensors being used and the specified recording interval. It offers easy-to-use, high-quality temperature logging for industrial paint and powdercoat cure ovens. The oven data tracker is fitted with a large display for easy menu-driven operation and quick visibility of measurement results.
- Analysis Software: Allows users to analyze the logged temperature data and create detailed reports. Advanced oven profiling features like cure data analysis, ideal cure and tolerance bands, together with a wide range of display, report, and printing options, make Oven Logger the most flexible temperature logging solution available.
- Insulation Box: A high-quality insulation box with outer shield of high-grade stainless steel. The anodized aluminum inner box is shielded with a carefully formulated mixture of insulation material, which makes the combination suitable to resist high temperatures for a long time. This insulation box is also silicone-free, making it very suitable for applications in automotive and wet paint coatings.
| Technical Item | One-Channel | Four-Channel | Seven-Channel | ||
|---|---|---|---|---|---|
| BGD 951 | BGD 954/1 | BGD 954/2 | BGD 957/1 | BGD 957/2 | |
| Number of Channels | 1 | 4 | 4 | 7 | 7 |
| Temperature Range | -100°C ~ 300°C | -100°C ~ 300°C | -100°C ~ 500°C | -100°C ~ 300°C | -100°C ~ 500°C |
| Duration | 45 min for 200°C, 60 min for 150°C | 60 min for 300°C, 120 min for 150°C | 60 min for 500°C, 120 min for 300°C | 60 min for 300°C, 120 min for 200°C | 60 min for 500°C, 120 min for 300°C |
| Division | 0.1°C | 0.1°C | 0.3°C | 0.5°C | |
| Accuracy | 0.5% | 0.5% | 0.5% | ||
| Storage | Can store 32,000 readings. Record per second for 5 hours | Every channel can store 16,000 readings. Record per second for 5 hours | Record per second for 4 hours | Record per second for 3 hours | |
| Sampling Period | 1s, 10s | 1s; 2s; 3s; 4s; 5s; 6s; 10s; 20s; 30s, 1min programmable | 1s; 2s; 3s; 4s; 5s; 8s; 10s; 12s; 20s; 40s, 1min programmable | ||
| Setting Software | Can select sampling period, Print the Term. Curve with Computer, Check the data with EXCEL | Can select sampling period, Show the real-time Term. curve, Can save many groups data | Select or unselect channel with yes or no, Verify the accuracy separately for each channel, Easy to check the sample rate, Switch ON/OFF | ||
| Analysis Software | No | Display Temp. data, Calculate heating time above two different Temp., Compare different term. profiles,USB datalogger, USB temperature sensors, USB software and analysis software, Insulation box | |||
| Standard Disposition | Oven datalogger | Oven datalogger, Oven temperature sensors, USB cable, Setting software, Manual | Oven datalogger, Oven temperature sensors, USB cable, Oven software and analysis software, Insulation box, Manual | ||
| Size (mm) | 63 x 160 | 110 x 125 x 300 | 135 x 155 x 300 | 100 x 120 x 280 | 130 x 160 x 300 |
