Super High Speed Dispersing Machine

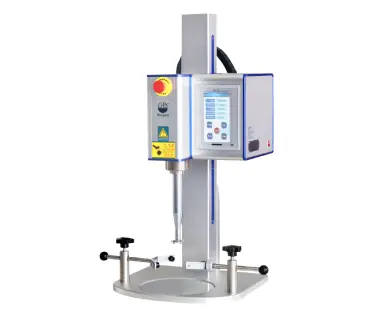

BGD 746 Super High Speed Dispersing Machine integrates super high-speed dispersion, stirring, and automatic control of lift distance. It can meet the application requirements of customers for super high-speed dispersion and homogeneous emulsification, with excellent dispersion and emulsification effects, as well as high dispersing efficiency. In addition, this machine is operated by a large-size touch screen, which is powerful, convenient, and practical.

Features:

  • Super high-speed motor: The max. speed can reach 20,000 r/min. Bigger torque, lower noise, and lower power consumption.
  • Max. lift distance: Can reach 300mm. Servo system for locating can precisely feedback the height information in real time.
  • Dispersing blade: Can be set to stay at the required height, suitable for different sizes of dispersing containers or different material levels. Safety can be ensured during use.
  • Dispersion process: The dispersing blade can circularly lift up and down at the same time; lift distance and speed can also be set. Greatly improves the dispersion efficiency.
  • Control features: With a 7-inch touch screen, the tip speed, torque ratio, and the height of dispersing blade can be displayed in real time.
  • Test parameters: Can be set, such as speed, run time, diameter, height, etc.
  • Container suitability: Suitable for containers with a capacity of 0.5L-5L, and can meet more different test requirements.

Main Technical Parameters:

  • Rated Power of Motor: 1.5 kW
  • Rated Motor Torque: 1.6 N·m
  • Adjustable Working Speed: 10,000 – 20,000 rpm
  • Lift Speed: 0 – 30 mm
  • Max. Lift Distance: 300 mm
  • Length of Stirring Rod: 220 mm
  • Dimension (W × D × H): 470 mm × 470 mm × 920 – 940 mm (from low to top)
  • Gross Weight: 84 kg
  • Power Supply: 220V, 50/60 Hz
  • Max. Power of Whole Machine: 2 kW
  • Comes with two heavy-duty dispersing blades: one each of 50 mm and 60 mm
  • Ordering Information : Model: BGD 746 – Super High Speed Dispersing Machine

Optional Accessories

Model Description
BGD 1410 35 mm Dispersing Blade
BGD 1411 50 mm Efficient Dispersing Blade (for low viscosity sample)
BGD 1412 50 mm Dispersing Blade (for low viscosity sample)
BGD 1413 60 mm Dispersing Blade
BGD 1414 70 mm Dispersing Blade
BGD 1415 80 mm Dispersing Blade
BGD 1416 Dispersing Container
BGD 1417 Dispersing Container
BGD 1418 Dispersing Container
BGD 1419 Dispersing Container
