Single-shaft High Speed Disperser Supplier and Dealer in India

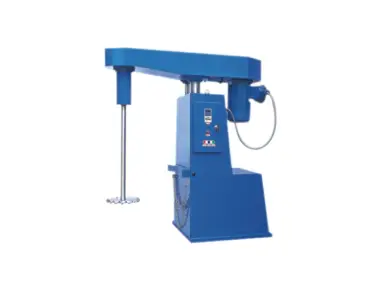

Single-shaft High Speed Disperser

Single-shaft High Speed Dispersers are commonly used in chemical mixing and distribution with variable frequency speed adjustment. Currently available for customers to choose from the ordinary or explosion-proof models.

Items of this equipment with blade distributor, oar distributor, or anchor distributor are designed on request with variable specifications of power. With a screw lifting system, these machines lift distance and center distance between the base and the scattered axles.

Main Technical Parameters :

Parameter BGD 8011/S
Motor Power 4.0 kW
Total Power 6.5 kW
Working Travel (mm) 700
Adjustable Speed 0 ~ 1450 r.p.m.
Suitable Container Capacity (L) 50 ~ 200
Including Dispersing Blades (mm) Φ150, Φ200
Overall Size (cm) 145 × 55 × 145
