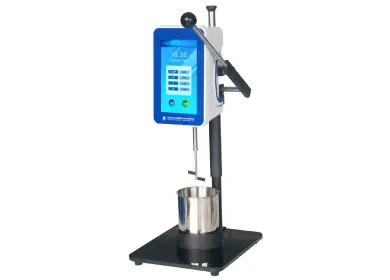

Multifunction Stormer Viscometer
BGD 187 Intelligent Touch-screen Stormer Viscometer is designed in accordance with ASTM D 562. It is fully upgraded from BGD186, with more reasonable structure, simpler operation and wider application.
Features
- Apply a new appearance design: using 7 inch industrial grade full touch screen, more clearly display and more convenient operation.
- Come with calibration certificate.
- Built in infrared thermometer sensor to measure sample temperature, more convenient and more precise.
- Magnetic rotor enables rapid installing, dismantlement or cleaning.
- Designed with calibration function: the end user can calibrate regularly with standard oil, no need return to its manufacturer.
- Compared with similar instruments, the cost is greatly saved.
- Aluminum alloy + Glass base plate, beautiful and easy to clean.
Main Technical Parameters :
- Range: 40.2KU – 141.0KU 27 – 5250 cP
- Accuracy: ± 1.0% of full scale range
- Repeatability: ± 0.5% of full scale range
- Paddle speed: 200/rmin ± 0.1/rmin
- Volume of container: 500ml
- Power Supply: 220V 50Hz
- Overall dimensions: 210mm × 180mm × 500mm (L × W × H)
- Gross Weight: 5.1 KG
- Ordering Information:
- BGD 187 — Intelligent Touch-screen Stormer Viscometer
