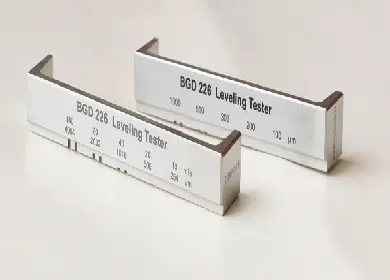

Leveling Tester
BGD 226 Leveling Tester is designed to determine the relative leveling of liquid coating materials before curing in the laboratory. (Coating materials have to eliminate surface defects during drying.) It complies with ASTM D2801-1994 (BGD 226/1) and NYPC (BGD 226/2).
It is made of stainless steel with a straight scraper fitted with 5 pairs of notches of increasing depth from 100–1000 µm (or 250–4000 µm).Once the drawdown has been made on a horizontal, firm surface, leave the coating to cure. Once the coating is dry, identify the thickness at which the pair of film stripes merge.
Main Technical Parameters:
- BGD 226/1: For coating thickness 100–200–300–500–1,000 µm
- Overall dimensions: Gate type 120mm x 20mm x 20mm (L x W x H)
- BGD 226/2: For coating thickness 10–20–40–80–160 mils
- Overall dimensions: Gate type 120mm x 20mm x 20mm (L x W x H)
- Come with Calibration Certificate
- Weight: 0.3 kg
- Ordering Information:
- BGD 226/1: Leveling Tester (100-1,000 µm)
- BGD 226/2: Leveling Tester (10-160 mils)
