Intelligent Fineness of Grind Tester

The test results of fineness of grind from different operators are often with low reproducibility. The different power and speed applied on the scrapers are ones of the reasons of the inconsistent. Another reason is that there are always some subjective factors to judge particle number and distribution, because it is not easy to give a test result in 5 seconds, especially for the gauges with small range such as 0-25μm.

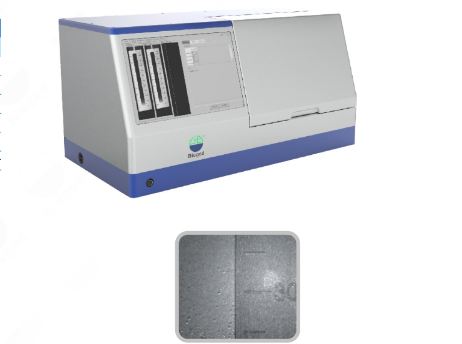

BGD 246 Intelligent Fineness of Grind Tester is an intelligent instrument newly developed by our company. This instrument can not only automatically complete the standard scraping of the sample on the groove of the grinding gauges, but also immediately take and save the pictures of the sample particles in the area. And according to the regulations of the result reading of the relevant standards, it can automatically identify the scraper fineness value of the sample within 5 seconds, and also display the statistical chart of particle distribution.

Features:

  • Full-automatic and rapid fineness measurement with excellent convenience, high efficiency and good repeatability & reproducibility.
  • Directly demonstrate the test results with two determination methods A or B according to GB/T 1724-2019.
  • Compatible with different types of grinding gauges, including single-channel (170mm × 50mm), double-channel (175mm × 65mm), wide-channel (175mm × 65mm) with different measuring ranges of 0-25μm, 0-50μm, 0-100μm and 0-150μm.
  • Anti-interference to the defects of pits, scratches, tiny bubbles, and bubble aggregation, displaying the number and sizes of such noise defects.

Main Technical Parameters :

  • Measuring Range: 0-200 μm (corresponding to a variety of scrapers, including 0-25 μm, 0-50 μm, etc., and the maximum is 0-200 μm)
  • Scraping Speed: 50mm/s-150mm/s (adjustable)
  • Measuring Accuracy: ± 5% FS
  • Single Testing Time: < 2 min.
  • Ordering Information: BGD 246—Intelligent Fineness of Grind Tester
