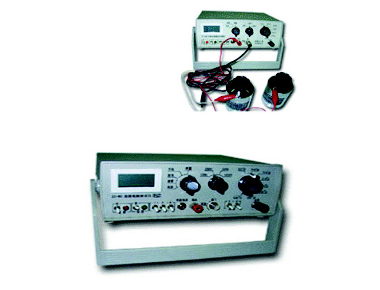

Insulation Resistance Meter
Insulation Resistance Meter is used to test electrician insulated materials, cable and wire, anti-static engineering and other electric materials. It is made up of the most advanced high megohm resistance, weak current electronic components. With high precision, high resolution, strong capacity anti-jamming, etc., characteristics.
Main Technical Parameters:
- Rated voltage: 10V, 100V, 500V
- Measuring Scope: 0–2 × 10^9 Ω
- Measurement error:
- ± (1% showing value + 2 LSD) R ≤ 10^9 Ω
- ± (3% showing value + 2 LSD) 10^9 Ω to 10^10 Ω
- ± (5% showing value + 2 LSD) 10^10 Ω to 10^11 Ω
- ± (10% showing value + 2 LSD) 10^11 Ω to 10^12 Ω
- Testing set time: 1 min – 7 min
- Power supply: 8 pcs 1.2V rechargeable batteries or 8 pcs 1.5V battery
- Operating environment: 0 – 40°C, 85% RH (25°C)
- Weight: 2 kg
- Size: 270mm × 250mm × 100mm
- Ordering Information: BGD 968 – Insulation Resistance Meter
