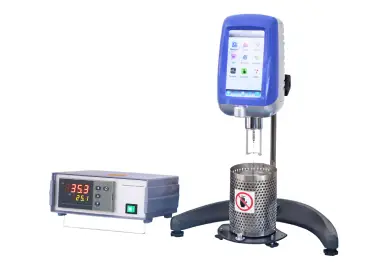

High-temperature Intelligent Touch-screen Viscometer
This high temperature intelligent touch-screen viscometer comes with a heating device (thermosal) which can heat sample to a appointed temperature. It is used to test hot melt adhesive, asphalt, paraffin and hot polymer.
- 7 inch high definition touch screen, easy to operate and display rich information. Powerful human-machine interface and various humanized operation menu for conversion.
- Anti-static shell and PC material lifting pole.
- Simple operation for temperature control, sample container with thermal insulation and steady temperature control.
- ARM chip processor: higher data processing speed.
- New designed durable small axles.
- Come with a gigabit ethernet interface to transfer data, reliable and quick.
- Support external storage: single point, continuous and timing data.
- Calibrated by user, temperature and viscosity correction factor are protected by password, also can be modified by user when they have reliable and accurate data.
- Can measure viscosity by infinitely variable speed, input any speed, the instrument would display the max. measuring range under different rotors. Convenient for users to choose suitable testing parameters.
- Convert freely between various viscosity units, dynamic viscosity convert kinematic viscosity automatically.
- Accompanied with detailed operation instruction.
Main Technical Parameters :
- Measurement Range (mPa·s): two ranges for optional (also can be customized) as below:
- For medium viscosity sample: 50–10M(mPa·s/cP)
- For low viscosity sample: 5–1M(mPa·s/cP)
- Rotors: SC4–21, 27, 28, 29 four spindles;
Optional: SC4–14, 15, 16, 25, 31, 34. - Measurement Accuracy: ± 1.0 % of the full range.
- Rotate speed: 0.1–200 RPM (stepless speed)
- Repeatability: 0.2 % of the full range.
- Thermosal Temperature Range: RT +10°C – 250°C or RT +10°C – 500°C (precision 0.1°C).
- Electrical power: 110V & 220V/50Hz & 60Hz.
- Ordering information:
- BGD 155/T1 — High-temperature Intelligent Touch-screen Viscometer (RT +10°C – 250°C)
- BGD 155/T2 — High-temperature Intelligent Touch-screen Viscometer (RT +10°C – 500°C)
