High-speed dispersing machine (Explosion-proof)

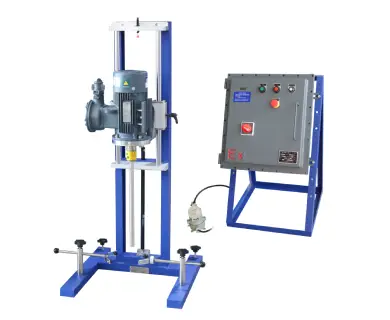

BGD 750 Series High-speed dispersing machine (Explosion-proof) is a new product designed by our company. It is equipped with two sand-milling discs, two dispersing blades, and a double-layer stainless steel container. With only one machine, the operator can finish tasks such as sand-milling, high-speed dispersing, and mixing. Furthermore, the electric lift design is very convenient for female operators.

Features:

  • High-quality squirrel-cage motor and use frequency converter to adjust working speed.
  • Direct display shows revolutions through the screen of the frequency converter installed on the machine.
  • No carbon brush, does not produce any flame when working.
  • Lower noise, bigger torque and wider adjustable speed.
  • Main parts are made up of stainless steel, with perfect corrosion resistance.
  • Inlet and outlet of cooling water are equipped with fast joints, convenient for operators to install or remove quickly.
  • Container is produced by a whole special mold, and bottom is arc structure, can be cleaned completely. Very convenient for operators to do different samples.
  • Standard configuration: Two or four (only for 550W/750W) different dispersing blades, two different size sand-milling blades, and a stainless steel double jacket container.
  • BGD 750/1 & BGD 750/2 have lifting lever marked with scale, which are convenient to adjust the distance of the dispersing blade to container bottom.
  • Power Supply: 220V 50Hz

Ordering Information :

Model Motor Power Speed (r/min) Container Capacity Lift Distance Lift System Dispersing Blades Sand-Mill Blades Overall Size (mm) W x D x H (Low - Top)
BGD 752/2 750W 0–3,000 1.25 L 300 mm Spring lift by hand 50 mm & 60 mm 50 mm & 60 mm 530 x 560 x 965 - 980
BGD 752/5 2,200W 0–3,000 5 L 520 mm Spring lift by hand 100 mm & 120 mm 100 mm & 130 mm 640 x 680 x 1430 - 1500
