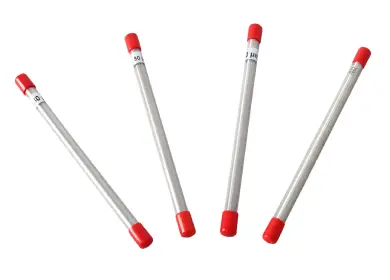

Formed Rods

Traditional wire bar coaters are wire-wound rods (twine rods with steel wires). The fine wire on the surface is easily loosened or broken, and it is not easy to clean and neither used to make the ultra-thin coating.

To solve this problem, Biuged develops a new product - Formed Rods. These rods are made by a precise mould, using the cold extrusion technique to make the uneven curve on its surface, which allows for the same coating results as traditional wire bar coaters.

Features:

  • Machined by CNC with precise mould, the deviation of groove depth and space is lower than 2 µm, which gets more uniform film.
  • The service life will be longer without broken or loosen steel wires.
  • Smooth curving surface makes it easier to clean.
  • Realizing the ultra-thin coating, the thinnest wet film can reach 6 µm, which makes it known as super wet film coater.

Main Technical Parameters

Products Name Ordering Information Coating Width Rod Length The Length of Holding Part Optional Theoretical Wet Film Thickness (µm)
Regular Formed Rods BGD 214 200mm 240mm 20mm/20mm 6–8–10–12–15–20-25–30–40–50–60–80
Extended Formed Rods BGD 215 300mm 400mm 47mm/47mm 6–8–10–12–15–20-25–30–40–50–60–80
