Cone and Plate Viscometer
Paints or inks often are in different shear rates status from manufacturing to application. As a typical non-Newtonian fluid, paints or inks always show different viscosity characteristics at different shear rates.
Generally speaking, paints are in a low shear rate state when it is stored, transported, levelling, and sagging. But they are in the medium shear rate when being pumped, dipped, and mixed at a low speed. At high-speed dispersion, roll, spray, and brush coating, they are in a high shear state, and the shear rate is generally 9000s⁻¹ to 12000s⁻¹. Therefore, understanding the rheological characteristics of paints or inks at such high shear rates requires the use of a cone-plate viscometer to measure.

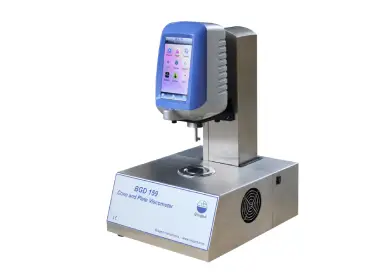

The BGD 182 Cone-and-plate Viscometer uses a special angle conical spindle, which generates a very high shear rate on the measured sample under the high-speed drive of a stepper motor. It conforms to ISO 2884-1 (Paints and varnishes — Determination of viscosity using rotary viscometers — Part 1: Cone-and-plate viscometer operated at a high rate of shear).
Features
- 7-inch touch screen: Menu operation, rich display content (measurement values, spindle No., speed, shear rate, etc.), simple and convenient to operate.
- Beautiful and durable metal shell: Use a handle to lift up and down, precise and fast positioning, high reliability.
- Electrical design: The electrical part of the machine has been carefully designed, ensuring high reliability, precision, stability, and ease of use.
- ARM chip processor: Offers faster data processing speed.
- High precision linear calibration: Conducted before leaving the factory, capable of interpolating multiple points to ensure higher measurement accuracy.
- Stepless speed measurement: Measure the sample viscosity by stepless speed, allowing operators to choose different shear rates based on actual application conditions of the sample.
- Variable viscosity measurement: The measured viscosity values vary continuously, and many viscosity units can be freely interchanged.
- The instrument automatically alarms when the measurement exceeds the range.
- High-speed data transmission interface ensures a fast and stable communication connection between the instrument and the computer.
- Data storage and exporting data by an external USB function.
- Built-in high-precision PT100 temperature sensor, with high temperature control accuracy and good stability.
- Calibration function to temperature ensures precise and reliable temperature control.
- Powerful and simple calibration function: Users only need one bottle of standard oil and can quickly calibrate the instrument through its built-in calibration menu.
- Can choose the data collection and programmed analysis software to analyze the rheological features of the sample thoroughly.
Main Technical Parameters :
- Adjustable Speed Range: 5 rpm – 1000 rpm (continuously variable, @1 rpm)
- Measurement Error: < 2% of full scale
- Sample Volume: < 2 ml (See the table below for details)
- Temperature Control:
- Low temperature: 5°C – 75°C (L type)
- High temperature: 50°C – 235°C (H type)
- Temperature Resolution: 0.1°C
- Temperature Control Accuracy:
- ±0.5°C (L type)
- ±1°C (H type when the set temperature is less than 150°C) or ±2°C
Power Supply: AC 220V, 50Hz/60Hz, the max. current is about 1.5A
- Size: 275 mm x 210 mm x 460 mm (L x W x H)
- Net Weight: 12 KG
- Ordering Information:
- BGD 182/1 — Low torque Cone-and-plate Viscometer
- BGD 182/2 — High torque Cone-and-plate Viscometer
Ordering Information
| Spindle Type | Sample Size | Shear Rate Range (s⁻¹) | BGD 182/1 Measurement Range (mPa·s) | BGD 182/2 Measurement Range (mPa·s) |
|---|---|---|---|---|
| CAP-01 | 67 µL | 66.5 – 13,300 | 20 – 1,600 | 20 – 37,500 |
| CAP-02 | 38 µL | 66.5 – 13,300 | 20 – 2,300 | 40 – 75,000 |
| CAP-03 | 24 µL | 66.5 – 13,300 | 20 – 6,600 | 80 – 150,000 |
| CAP-04 | 134 µL | 16.5 – 3,300 | 20 – 13,000 | 100 – 300,000 |
| CAP-05 | 67 µL | 16.5 – 3,300 | 20 – 26,000 | 300 – 600,000 |
| CAP-06 | 30 µL | 16.5 – 3,300 | 20 – 66,000 | 800 – 1,500,000 |
| CAP-07 | 1,700 µL | 13 – 2,000 | 20 – 2,600 | 78 – 62,500 |
| CAP-08 | 400 µL | 13 – 2,000 | 20 – 10,800 | 313 – 250,000 |
| CAP-09 | 100 µL | 25 – 5,000 | 20 – 44,000 | 125 – 1,000,000 |
| CAP-10 | 170 µL | - | - | 100 – 100,000 |
