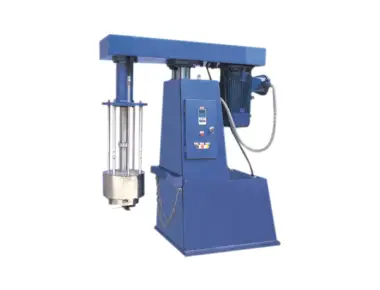

Basket Grinding Machine
This is a new model of fast high grinder for materials with high or middling stickiness, one type with variable frequency speed adjust and the other with electric frequency speed adjust; a model of ordinary design and a model of explosion-proof design are currently available for customers to choose from.
Characteristics:
- Basket design renders a thorough change of the traditional mode of grind.
- Basket lift design makes the machine user-friendly while feeding and discharging.
- Dual-blade design at the bottom of the basket feeds the ground material of circulation assist, saving energy and reducing cost.
- Circulation cooling design in the secret compartment between the basket wall and inner container will provide effective protection for temperature-sensitive material.
- Blade at the basket bottom feeding upwards, all-round interactive collision spurred by the back and cross flows and convection between the ground materials and intermediary agent in the basket renders fast grind and distribution, ensuring the fineness of ground material.
- Speed of grind is adjustable, making it suitable for the grind of varieties of materials and, further more, saves grind time.
- Temperature-control system provides safety and controls the temperature while grinding.
- Rotary blade design inside the cylinder prevents material from sticking to the wall, making the grind more thorough and the better-distributed.
- User-friendly service vehicle with machine eases labor intensity.
- Timer relay controls grind time, making the machine more user-friendly.
- Hydraulic lift.
Main Technical Parameters :
| Parameter | BGD 8051 | BGD 8053 | BGD 8055 | BGD 8057 | BGD 8058 |
|---|---|---|---|---|---|
| Motor Power | 7.5 kW | 11 kW | 15 kW | 18.5 kW | 22 kW |
| Total Power | 9 kW | 13 kW | 17.7 kW | 21.1 kW | 25 kW |
| Working Travel (mm) | 800 | 1000 | 1200 | ||
| Adjustable Speed | 0 ~ 1450 r.p.m | ||||
| Including Double-jacket Stainless Steel Container (L) | 2 × 100L | 2 × 150L | 2 × 200L | 2 × 300L | 2 × 300L ~ 450L |
| Including Tool Car | No | Yes | |||
| Including 95% Zirconia Beads | 18 KG | 28 KG | 98 KG | ||
| Overall Size (cm) | 155 × 75 × 175 | 165 × 90 × 180 | 165 × 99 × 190 | ||
