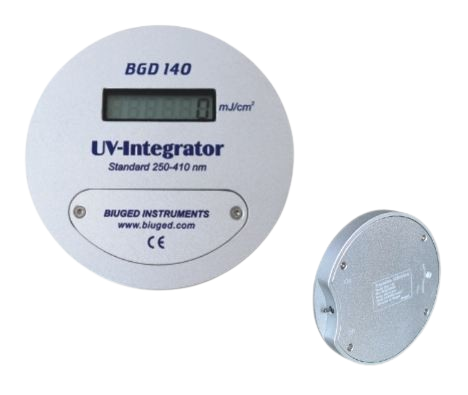

UV Integrator
The UV-Integrator is a high-quality UV measuring instrument. It is used to measure UV energy from different light sources, especially in printing machines and UV solidify machines. It is ideal for ensuring quality control during printing and drying processes.
It measures an integral in the spectral range from 250-410 nm, with a peak at the area of 365 nm. By adding the incidence of light quantities during the exposure cycle, relative values are calculated. Due to uneven radiation distribution of the UV light source and different construction types of measuring devices by various manufacturers, different readings may appear under the same measurement conditions.
Main Technical Parameters :
- Spectral range: UV 250–410 nm
- Measuring range: 0 to 5,000 mW/cm²
- Display range: 0 to 999.999 mJ/cm²
- Power source: 3V Lithium Battery (Replaceable)
- Shape: Disc structure, diameter 95 mm and height 12 mm
- Weight: 160 g
- Work environment: While on the conveyor belt, it can withstand max. 110°C for up to 10 seconds
- Calibration period: one year
- Ordering information: BGD 140 – UV Integrator
