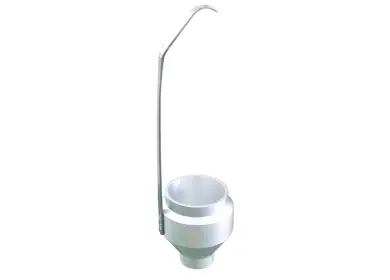

Hand-Held Ford Cup
Ford d Cups produced by our company are in accordance with International Standard ASTM D1200, D333, D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All Biuged Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.
Main Technical Parameters :
- Internal Diameter : 50 ± 0.5mm
- Outer Diameter : 86 ± 0.1mm
- Internal Orifice Length : 10 ± 0.1mm
- Production Tolerance : ± 2%
Ordering Information
| Details/Ford cup | Ford Cup (No.2) | Ford Cup (No.3) | Ford Cup (No.4) | Ford Cup (No.5) | Hand-Held Ford Cup (No.4) |
|---|---|---|---|---|---|
| Internal Vertical Height | 43 ± 0.1 | 43 ± 0.1 | 43 ± 0.1 | 43 ± 0.1 | 43 ± 0.1 |
| Internal Orifice (mm) | 2.53 | 3.40 | 4.12 | 5.20 | 4.12 |
| External Orifice (mm) | 5.0 ± 0.5 | 5.5 ± 0.5 | 6.0 ± 0.5 | 7.6 ± 0.5 | 6.0 ± 0.5 |
| Measurement Range (Cst) | 25-120 | 49-220 | 70-330 | 215-1413 | 70-370 |
| Suitable Flow Time (sec) | 40-100 | 25-105 | 20-105 | 20-105 | 20-105 |
| Ordering Information | BGD 125/2 | BGD 125/3 | BGD 125/4 | BGD 125/5 | BGD 125/4P |
