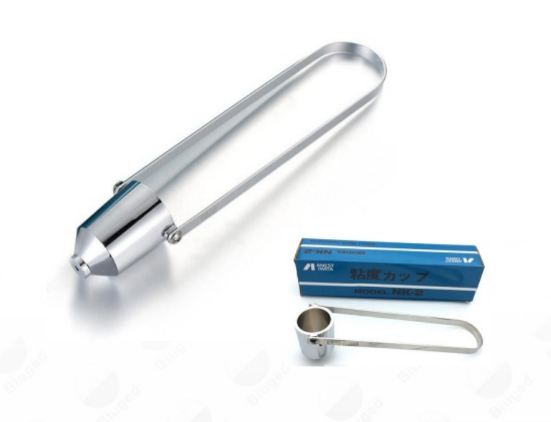

Japanese Iwata Cups Supplier and Dealer in India

The Iwata cup is based on the Japan method of liquid viscosity measurement. It is used to test sample viscosity which is going to spray by spray gun. The procedure of usage is the same as that of the Zahn Cups.

Main Technical Parameters :

  • Volume of Cup : 50ml ± 2ml
  • Orifice Diameter : 3.5mm ± 0.1mm
  • Cup Material : Nickel-plated brass
  • Cup External Diameter : 42.0mm ± 0.2mm
  • Cup Internal Diameter : 35.0mm ± 0.2mm
  • Suitable Test Range : 20s to 100s
  • Ordering Information : BGD 122---NK-2 Iwata Cup
