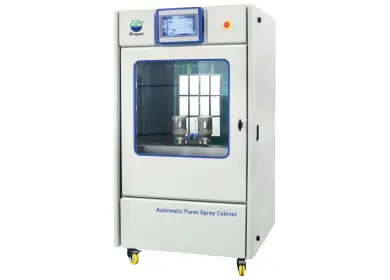

Automatic Panel Spray Cabinet
Paint laboratories need to prepare a large amount of test panels with a uniform coating when testing paint film performance. The results from traditional manual spraying depend on the operator's experience and skills, which can impact the uniformity of the coating and pose risks to the operator's health and the environment due to improper spraying.
Biuged has developed this Automatic Panel Spray Cabinet considering this situation and combines with other products in market.
Advantages :
- With 10-inch touch screen, powerful visual operation.
- The machine applied servo control system, the horizontal, vertical or cross spraying methods can be selected. The panel holder can rotate 90 degrees, which makes the coating more uniform. And the spraying area can be set freely, which will reduce the waste and save spraying time.
- User can set the parameters such as spraying speed, spraying pressure, atomizing, feeding and interval, etc. User can also edit and preset up to 18 spraying programs, which will help the operators who are not familiar with spraying operation to complete spraying with one key.
- The panel holder is easy to be disassembled, and panels can be quickly replaced. With magnetic panel holder and vacuum panel holder, the machine can be used for substrates of different materials.
- Automatic spray gun can be assembled and unassembled quickly, convenient for user to change different spray guns.
- Use disposable cups to carry sample for spraying, simple and convenient, low cost and no-clean.
- Easy-to-clean design, filter and scrap tray are slide-out structure. The cabinet is designed with a three-door structure, which is convenient to clean. The container adopts the disposable bottle.
- Equipped with the filter system for working room air intake, which not only makes the spraying environment be clean and the excess paint of paint mist is filtered, but also keeps the operators and mist completely separated, which is healthy and environmentally friendly.
- The inner wall of the instrument is sprayed with Teflon non-stick coating, which is convenient to clean.
- Equipped with alarm system for flammable gas, the operation safety is improved.
- Equipped with the function of door limit switch. When the door is opened, the machine stops running, which can protect the safety of operators.
Main Technical Parameters:
- Max. Spraying Area: 12 pcs panels with 150mm x 70mm
- Gun Moving Speed: 0–1,000mm/s in horizontal direction and 0–200mm/s in vertical direction
- Spraying Distance: 100mm–300mm (can be adjusted automatically)
- System Pressure: 0–0.7MPa
- Atomization Pressure: 0–0.7MPa
- Overall Size: 980mm x 1000mm x 1850mm (W x D x H)
- Power Supply: 220V; 50/60Hz
- Total Power: 1.5kW
- Ordering Information: BGD 227/V—Automatic Panel Spray Cabinet
