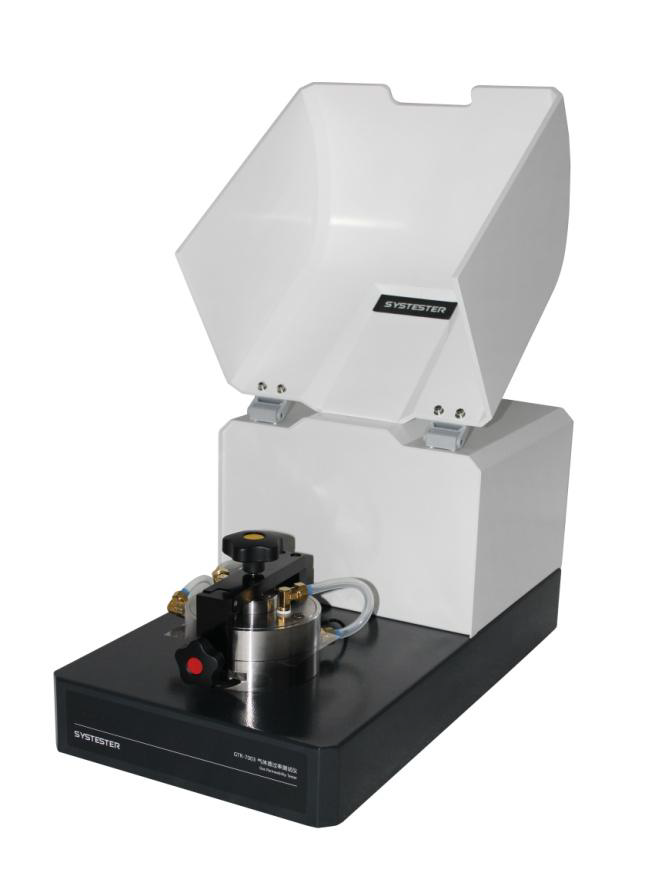

GTR 736 Gas Permeability Tester
Application
GTR 736 is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires, and permeable membranes.
Features
- Vacuum differential pressure method
- Computer-controlled with one-button automatic testing
- High-accuracy embedded vacuum and temperature sensors
- Real-time environment temperature and humidity monitoring
- Tests permeability, solubility, and diffusion coefficients
- Optional water bath temperature control chamber
- Multiple test modes available
- 24-bit Δ-Σ AD system for high precision
- Data curve display and DSM system support
- Traceable reference film calibration supported
Technical Specification
- Test Range: 0.05 – 160,000 cm³/m²·24h·0.1MPa
- Resolution: 0.001 cm³/m²·24h·0.1MPa
- Sample: One piece
- Vacuum Accuracy: 0.1 Pa
- Temperature Range: 5℃ – 95℃ (with controller)
- Temperature Accuracy: ±0.1℃
- Sample Thickness: < 3mm
- Sample Size: ≥ 150mm × 94mm
- Test Area: 48 cm²
- Test Gases: O2, N2, CO2, He, etc. (Flammable/toxic gases like H2, CH4, H2S, etc., on request)
- Differential Pressure: -0.1MPa ~ 0.1MPa; 1.0MPa / 4.0MPa (optional)
- Gas Interface: Φ8mm
- Dimension: 330mm(L) × 600mm(W) × 330mm(H)
- Power Supply: AC 220V 50Hz
- Net Weight: 28kg
Standards
- ASTM D1434
- ISO 15105-1
- ISO 2556
- GB/T 1038-2000
- JIS 7126-1
- YBB 00082003
Configuration
Delivery: Main unit, computer, G-TRANS software, vacuum pump, tank regulator, PCIE card, communication cable, sample cutter, vacuum grease
Optional: Temperature controller, reference film, DSM system, extra vacuum grease and sample cutter
