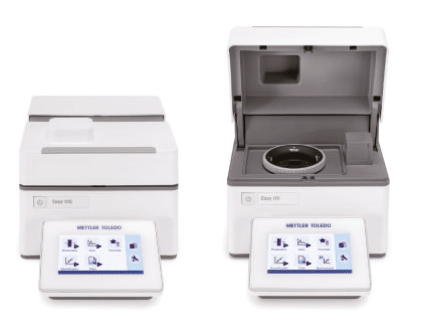

3-in-1 Spectrophotometer
Compact, Versatile & Efficient
| EasyPlus UV/VIS | Easy UV | Easy VIS |
|---|---|---|
| Model | UV/Vis | Vis |
| Light source | Xenon flash lamp | Tungsten lamp |
| Detector | Dual silicon photodiodes | |
| Optical system | Dual beam with reference detector | |
| Spectral bandwidth (SBW) [nm] | 3 | 4 |
| Photometric display range [A] | –3.0 … +5.0 | |
| Photometric accuracy [A] |
at 0.5 A: ± 0.002 at 1.0 A: ± 0.005 at 2.0 A: ± 0.005 at 2.5 A: ± 0.010 |
– |
| Photometric repeatability at 1 A (neutral density filter) [A] | ≤ 0.001 | – |
| Wavelength range [nm] | 190–1,000 | 330–1,000 |
| Wavelength accuracy (holmium oxide) [nm] | ± 1.5 | – |
| Wavelength repeatability (holmium oxide) [nm] | ≤ 0.5 | – |
| Stray light [%T] |
≤ 0.1 at 340 nm (sodium nitrite) ≤ 0.5 at 220 nm (sodium iodide) ≤ 2.5 at 198 nm (potassium chloride) |
≤ 0.1 at 340 nm (sodium nitrite) |
| Scanning speed [nm/min] | max 2,000 | max 2,800 |
| Noise [A] |
at 0 A: ≤ 0.001 at 1 A: ≤ 0.002 at 2 A: ≤ 0.004 |
– |
| Drift [A/h] | ≤ 0.002 | – |
| Baseline flatness [A] | ± 0.003 | – |
| Applications and methods |
Max. user-defined methods: 80 Built-in color scales (e.g. CIELAB): 30 NANOCOLOR® water testing methods: Free and available on METTLER TOLEDO website Spectroquant® water testing methods: Covers all test kits (>150 methods) |
Max. user-defined methods: 25 NANOCOLOR® and Spectroquant® water testing methods supported |
| Number of user-defined methods in favorite list | 10 | |
| Firmware and method upgrade | Free and available on METTLER TOLEDO website | |
| Automatic path length detection | Enabled | |
| PC software | EasyDirect™ UV/VIS | |
| Result | Automatic export to USB (.csv file) Automatic export to EasyDirect (.xml file) |
|
| Cuvette dimensions supported by the XPathHolders™ | 10, 16, 20, 30, 40, 50 mm and 1 inch | |
| Display | 4.3" capacitive touchscreen | |
| Connectivity |
USB-A × 3 (keyboard, mouse, barcode reader, printer) USB-B × 1 (EasyDirect™ PC software) Pogo Pin × 1 (SQCkitReader™ for water testing methods) |
|
| Languages | Bahasa Indonesia, Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Spanish, Thai, Turkish | |
| Dimensions (width × depth × height mm) | 201 × 362 × 176 (7.9 × 14.2 × 6.9 inches) | |
| Weight (kg) | 4.25 | |
| Power requirements | AC to DC converter included, 100–240 V, 50–60 Hz | |
