FiveEasy Plus™ Series

Specifications	FiveEasy Plus™ pH FP20	FiveEasy Plus™ Conductivity FP30
Measuring Range	−2.000 ... 16.000 pH −2,000 ... 2,200 mV −5.0 ... 105.0 °C (23.0 ... 221.0 °F)	0.00 µS/cm ... 500.0 mS/cm (conductivity) 0.00 mg/L ... 300.0 g/L (TDS) 0.00 ... 42.00 psu (salinity) −5.0 ... 105.0 °C (23.0 ... 221.0 °F)
Resolution	0.01 pH 1 mV 0.1 °C	Automatic range 0.01 psu (salinity) 0.1 °C
Accuracy (instrument)	±0.01 pH ±1 mV ±0.3 °C	±0.5% of the measured value ±0.3 °C
Temperature Compensation	Automatic or manual
Automatic and Manual Endpoint Recording	Yes	Yes
Endpoint Signal	Acoustic/visual	Acoustic/visual
Calibration	Max. 5 points, linear or segmented 4 predefined buffer groups	1 point 3 predefined standards, manual cell constant input
Data Storage	200 measurements, current calibration	200 measurements, current calibration
Connectors	Sensor Input: BNC, Cinch (NTC 30 k)	Sensor Input: Mini-DIN (NTC 30 k)
RS232 Interface	Yes	Yes
USB Interface	Yes	Yes
Reference Input	Yes	-
General Power Supply	100...240 V, 50...60 Hz, 12 VDC
Display	4.3" segmented LCD
Housing	ABS
Size/Weight	227 × 147 × 70 mm / 0.63 kg

	pH	mV	Cond	Ions	Temperature
SD20	✓				✓
SD30	✓	✓			✓
SD50	✓	✓	✓	✓	✓
SD23	✓		✓		✓
Range	–2.000…20.000	–2,000.0…2,000.0 mV	Conductivity: 0.000 µS/cm…2.000 mS/cm TDS: 0.00 mg/L…1,000 g/L Salinity: 0.00…80.00 psu Resistivity: 0.00…100.0 MΩ*cm	mmol/L, mol/L, mg/L, ppm: 0…999,999 %: 0…100.000 pX: –2.000…20.000	–30.0…130.0 °C
Resolution	0.1 / 0.01 / 0.001	1 / 0.1	Auto-range, max. 0.001	mmol/L, mg/L, ppm: 0.001 mol/L, %: 0.0001 pX: 0.1 / 0.01	0.1 °C
Accuracy	±0.002	±0.1 (–500.0…500.0 mV) ±0.2 (–2,000.0…2,000.0 mV)	0.5% of measured value	mmol/L, mol/L, mg/L, ppm, %: ±0.5% of measured value, pX: ±0.002	±0.1 (0–100 °C)
Calibration methods	Linear, Segmented	–	Linear, Manual cell constant	Linear, Segmented	–
Calibration points	1 to 5	–	1 or 2	1 to 5	–

Instrument	Kit	Scope of Delivery	Material No.
pH Meter SevenDirect SD20	Basic Instrument	Instrument, power supply, protective cover, Get-Started-Guide, electrode holder EasyPlace™	30671550
Kit	SD20, plus pH electrode InLab Expert Pro-ISM and 3×3 calibration buffer sachets (pH 4.01, 7.00 and 9.21 or 10.01)	30671554
Stirrer Kit	SD20 Kit plus EasyMix magnetic stirrer	30671555
HA Kit	SD20 Kit, with InLab Routine Pro-ISM instead of InLab Expert Pro-ISM	30671556
Organic Kit	SD20 Kit, with InLab Science Pro-ISM instead of InLab Expert Pro-ISM	30671557
Pure H₂O Kit	SD20 Kit, with InLab Pure Pro-ISM instead of InLab Expert Pro-ISM	30671558
Solids Kit	SD20 Kit, with InLab Solids Pro-ISM instead of InLab Expert Pro-ISM	30671559
Viscous Kit	SD20 Kit, with InLab Viscous Pro-ISM instead of InLab Expert Pro-ISM	30671560
Low Vol Kit	SD20 Kit, with InLab Micro Pro-ISM instead of InLab Expert Pro-ISM	30671561
pH/Ion meter SevenDirect SD50	Basic Instrument	Instrument, power supply, protective cover, Get-Started-Guide, electrode holder EasyPlace™	30671552
Kit	SD50, plus pH electrode InLab Expert Pro-ISM and 3×3 calibration buffer sachets (pH 4.01, 7.00 and 9.21 or 10.01)	30671544
F-ion Kit	SD50, plus PerfectION™ F sensor	30671545
HA Kit	SD50 Kit, with InLab Routine Pro-ISM instead of InLab Expert Pro-ISM	30671546
Organic Kit	SD50 Kit, with InLab Science Pro-ISM instead of InLab Expert Pro-ISM	30671547
Pure H₂O Kit	SD50 Kit, with InLab Pure Pro-ISM instead of InLab Expert Pro-ISM	30671548
Low Vol Kit	SD50 Kit, with InLab Micro Pro-ISM instead of InLab Expert Pro-ISM	30671549
Cond meter SevenDirect SD30	Basic Instrument	Instrument, power supply, protective cover, Get-Started-Guide, electrode holder EasyPlace™	30671551
Kit	SD30, plus conductivity sensor InLab 731-ISM and 2×2 conductivity standard sachets (1413 µS/cm and 12.88 mS/cm)	30671562
Pure H₂O Kit	SD30 Kit, with InLab 741-ISM instead of InLab 731-ISM and 2 conductivity standard sachets (84 µS/cm)	30671563
pH/Cond meter SevenDirect SD23	Basic Instrument	Instrument, power supply, protective cover, Get-Started-Guide, electrode holder EasyPlace™ with holder for up to three sensors	30671553
Kit	SD23, plus pH electrode InLab Expert Pro-ISM, conductivity sensor InLab 731-ISM, 3×3 pH buffer (pH 4.01, 7.00 and 9.21 or 10.01) sachets and 2×2 conductivity standards (1413 µS/cm and 12.88 mS/cm)	30671567
Pure H₂O Kit	SD23, plus pH electrode InLab Pure Pro-ISM, conductivity sensor InLab 741-ISM, 3×3 pH buffer (pH 4.01, 7.00 and 9.21 or 10.01) sachets and 2 conductivity standards (84 µS/cm)	30671568

Parameter	Measuring range	Resolution	Accuracy
pH	−2.000 ... 20.000	0.001 / 0.01 / 0.1	± 0.002
mV	−2000.0 ... 2000.0	0.1 / 1	± 0.1
ISFET pH	0.000 ... 14.000	0.001 / 0.01 / 0.1	± 0.05
Temperature	−30.0 ... 130.0 °C	0.1 °C	± 0.1 °C

Order info	Description and sensors	Order no.
S400-Basic (instrument)	Includes instrument, pH/mV expansion unit, 2 blank expansion units, uPlace™ electrode holder, semi-transparent cover, operating instructions, installation and quick guide, EasyDirect™ pH PC software, declaration of conformity and test certificate.	30046240
S400-Kit (kit)	As S400-Basic, but also with InLab Expert Pro-ISM, guide to pH measurements and 2 buffer sachets for pH 4.01, 7.00, 9.21 and 10.00.	30046241
S400-Bio (kit)	As S400-Kit but with InLab Routine Pro-ISM cable kit instead of InLab® Expert Pro-ISM.	30046242
S400-Micro (kit)	As S400-Kit but with InLab Ultra-Micro instead of InLab® Expert Pro-ISM.	30092982
S400-uMix (kit)	As S400-Kit, also including magnetic stirrer uMix	30092983
S975-uMix (kit)	Includes instrument, pH/ION, DO/BOD and conductivity expansion units, uPlace™ electrode holder, semi-transparent cover, operating instructions, installation and quick guide, EasyDirect™ pH PC software, declaration of conformity and test certificate. Also includes the uMix™ magnetic stirrer. Kit includes the following sensors: InLab Expert Pro-ISM, InLab 731-ISM and InLab® OptiOx.	30092989

Paint testing instruments Supplier & Dealer in Mumbai, Thane, Navi Mumbai, Agra, Ahmedabad, Ahmednagar, Ajmer, Amravati, Amritsar, Aurangabad, Bangalore, Beed, Belgaum, Bharuch, Bhavnagar, Bhopal, Bhubaneswar, Calicut, Chandigarh, Chandrapur, Chennai, Coimbatore, Cuttack, Daman, Delhi, Dhule, Ernakulam, Erode, Gangtok, Ghaziabad, Goa, Hubli, Hyderabad, Indore, Jaipur, Jalgaon, Jamshedpur, Jodhpur, Kolhapur, Kolkata, Lucknow, Ludhiana, Madurai, Mysore, Nagpur, Nashik, Noida, Patna, Pondicherry, Pune, Raipur, Rajkot, Salem, Satara, Secunderabad, Shimla, Sikkim, Silvassa, Solapur, Srinagar, Surat, Thane, Udaipur, Vadodara, Valsad, Vellore, Vijayawada, Visakhapatnam

We are the Best Lab Testing Instruments Supplier & Dealer in Mumbai, Thane, Navi Mumbai, Agra, Ahmedabad, Ahmednagar, Ajmer, Amravati, Amritsar, Aurangabad, Bangalore, Beed, Belgaum, Bharuch, Bhavnagar, Bhopal, Bhubaneswar, Calicut, Chandigarh, Chandrapur, Chennai, Coimbatore, Cuttack, Daman, Delhi, Dhule, Ernakulam, Erode, Gangtok, Ghaziabad, Goa, Hubli, Hyderabad, Indore, Jaipur, Jalgaon, Jamshedpur, Jodhpur, Kolhapur, Kolkata, Lucknow, Ludhiana, Madurai, Mysore, Nagpur, Nashik, Noida, Patna, Pondicherry, Pune, Raipur, Rajkot, Salem, Satara, Secunderabad, Shimla, Sikkim, Silvassa, Solapur, Srinagar, Surat, Thane, Udaipur, Vadodara, Valsad, Vellore, Vijayawada, Visakhapatnam

We are the Best Textile Testing Equipment Supplier & Dealer in Mumbai, Thane, Navi Mumbai, Agra, Ahmedabad, Ahmednagar, Ajmer, Amravati, Amritsar, Aurangabad, Bangalore, Beed, Belgaum, Bharuch, Bhavnagar, Bhopal, Bhubaneswar, Calicut, Chandigarh, Chandrapur, Chennai, Coimbatore, Cuttack, Daman, Delhi, Dhule, Ernakulam, Erode, Gangtok, Ghaziabad, Goa, Hubli, Hyderabad, Indore, Jaipur, Jalgaon, Jamshedpur, Jodhpur, Kolhapur, Kolkata, Lucknow, Ludhiana, Madurai, Mysore, Nagpur, Nashik, Noida, Patna, Pondicherry, Pune, Raipur, Rajkot, Salem, Satara, Secunderabad, Shimla, Sikkim, Silvassa, Solapur, Srinagar, Surat, Thane, Udaipur, Vadodara, Valsad, Vellore, Vijayawada, Visakhapatnam

Packaging Testing Instruments Supplier & Dealer in Mumbai, Thane, Navi Mumbai, Agra, Ahmedabad, Ahmednagar, Ajmer, Amravati, Amritsar, Aurangabad, Bangalore, Beed, Belgaum, Bharuch, Bhavnagar, Bhopal, Bhubaneswar, Calicut, Chandigarh, Chandrapur, Chennai, Coimbatore, Cuttack, Daman, Delhi, Dhule, Ernakulam, Erode, Gangtok, Ghaziabad, Goa, Hubli, Hyderabad, Indore, Jaipur, Jalgaon, Jamshedpur, Jodhpur, Kolhapur, Kolkata, Lucknow, Ludhiana, Madurai, Mysore, Nagpur, Nashik, Noida, Patna, Pondicherry, Pune, Raipur, Rajkot, Salem, Satara, Secunderabad, Shimla, Sikkim, Silvassa, Solapur, Srinagar, Surat, Thane, Udaipur, Vadodara, Valsad, Vellore, Vijayawada, Visakhapatnam

We are the Best Facial Mask Testing Solution in Mumbai, Thane, Navi Mumbai, Agra, Ahmedabad, Ahmednagar, Ajmer, Amravati, Amritsar, Aurangabad, Bangalore, Beed, Belgaum, Bharuch, Bhavnagar, Bhopal, Bhubaneswar, Calicut, Chandigarh, Chandrapur, Chennai, Coimbatore, Cuttack, Daman, Delhi, Dhule, Ernakulam, Erode, Gangtok, Ghaziabad, Goa, Hubli, Hyderabad, Indore, Jaipur, Jalgaon, Jamshedpur, Jodhpur, Kolhapur, Kolkata, Lucknow, Ludhiana, Madurai, Mysore, Nagpur, Nashik, Noida, Patna, Pondicherry, Pune, Raipur, Rajkot, Salem, Satara, Secunderabad, Shimla, Sikkim, Silvassa, Solapur, Srinagar, Surat, Thane, Udaipur, Vadodara, Valsad, Vellore, Vijayawada, Visakhapatnam

We are the Best Food Testing Equipments Supplier & Dealer in Mumbai, Thane, Navi Mumbai, Agra, Ahmedabad, Ahmednagar, Ajmer, Amravati, Amritsar, Aurangabad, Bangalore, Beed, Belgaum, Bharuch, Bhavnagar, Bhopal, Bhubaneswar, Calicut, Chandigarh, Chandrapur, Chennai, Coimbatore, Cuttack, Daman, Delhi, Dhule, Ernakulam, Erode, Gangtok, Ghaziabad, Goa, Hubli, Hyderabad, Indore, Jaipur, Jalgaon, Jamshedpur, Jodhpur, Kolhapur, Kolkata, Lucknow, Ludhiana, Madurai, Mysore, Nagpur, Nashik, Noida, Patna, Pondicherry, Pune, Raipur, Rajkot, Salem, Satara, Secunderabad, Shimla, Sikkim, Silvassa, Solapur, Srinagar, Surat, Thane, Udaipur, Vadodara, Valsad, Vellore, Vijayawada, Visakhapatnam

Calibration	Max. 5 points, 8 pre-defined and 20 user-defined buffer groups
Methods	17 pre-defined and 60 user-defined methods
System	Date/time, PIN-protection, user management, 10 languages
Data storage / Data export	At least 20000 data points, 250 analyses / USB-Stick, EasyDirect™ PC software

FiveEasy Plus™ Series

The FiveEasy Plus™ Series

SevenDirect™ Meters

Straight to the point

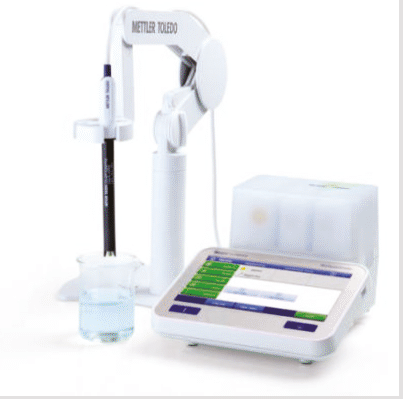

SevenExcellence™ pH/mV
