The double planetary mixing mixer is a multi-purpose equipment with high efficiency in reaction, mixing, stirring
and dispersion.
This machine fully disperses and mixes the materials through high-speed dispersion, double twist-style
low-speed stirring, and low-speed scraper.
Suitable for liquid-liquid, solid-liquid, paste-paste, powder-paste and other inventories in different industries.
Commonly used in production processes from low to high viscosity;Applicable materials include battery cathode
materials, adhesives, epoxy resins, polyurethane materials, etc
Applicable materials include battery cathode materials, adhesives, epoxy resins, polyurethane materials, etc.
Model
Lifting Method
Work Volume (L)
Dimension (mm)
Weight (kg)
Low-speed Stirring Speed (RPM)
High-speed Dispersion Speed (RPM)
EXJ-5
Electric Lifting
5
1200×520×1110
390
6–61
—
EXJ-10
Electric Lifting
10
1300×680×1780
520
9–149
—
EXJ-30
Hydraulic Lifting
30
1600×900×2300
1700
0–46
0–125
EXJ-60
Hydraulic Lifting
60
1900×1200×2500
2700
0–36
0–3000
EXJ-300
Hydraulic Lifting
300
3400×1300×3500
7700
0–32
0–1500
EXJ-500
Hydraulic Lifting
500
3700×1800×4000
11200
0–30
0–1200
EXJ-1000
Hydraulic Lifting
1000
4500×1900×4700
20500
0–30
0–1000
EXJ-1500
Hydraulic Lifting
1500
5800×2300×6600
42000
0–12
0–1000
Extruder
Extruders are generally used in conjunction with containers to help high-viscosity materials be emptied from the
container for metering, dispensing and filling. The pressure and the height of the pressure plate can be adjusted,
and there are two options of pneumatic and hydraulic. The discharge position can be connected with a metering
device to realize quantitative discharge, and the upper and lower discharge methods can be selected.
Technical Parameters
Model
Extrusion Disc Size (mm)
Pressure per Unit Area (kg/cm²)
Rated Pressure (t)
Extrusion Disc Stroke (mm)
Hydraulic Lifting Stroke (mm)
EPS-5
240
12.5 kg/cm²
5
350
—
EPS-10
310
12.5 kg/cm²
10
400
200
EPS-30
350
12.5 kg/cm²
16.1
500
200
EPS-50
500
12.5 kg/cm²
25.3
600
300
EPS-100
600
12.5 kg/cm²
35
700
400
EPS-200
750
12.5 kg/cm²
55.3
850
800
EPS-300
850
12.5 kg/cm²
65.8
1000
1000
EPS-400
940
12.5 kg/cm²
75.2
1000
1000
EPS-500
1000
12.5 kg/cm²
96.6
1200
1200
EPS-1000
1300
12.5 kg/cm²
160
1500
1200

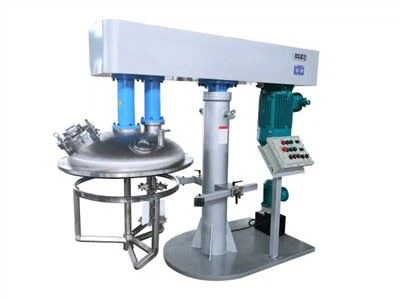

EBJ/XD Butterfly Mixer
This butterfly mixer is suitable for disperser and mixer of
high viscosity products, with a low speed butterfly wing
stirring and tooth disc high speed stirring, double mixing
can work at the same time, also can work independently,
butterfly type mixer with scraper to scrape the wall of tank,
can realize the straight wall-scraper, prevent touch wall,
optional vacuum/pressure, explosion-proof/non explosion-proof, can manufacture according to customer's
specific process requirements.
Features
High speed disc with inverter to get various speed, gate agitator with scrapper with gear reducer
Middle paddle mixer with angle to make the material up side and down, at the same time the high speed disc rotate at a high speed to disperse and shear the product.
