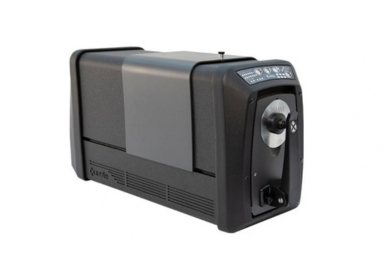

X-rite Ci7800 Spectrophotometer
Our industry-leading benchtop sphere spectrophotometer helps accelerate color approvals and reduce color rejections through features that provide procedural and operational efficiencies as well as color measurement consistency and accuracy
Built on a history of innovation, the Ci7000 Series offers the latest color measurement technology available, combining the newest advances in 2D CCD array technology with sophisticated processing capabilities to deliver the industry’s most accurate and repeatable color measurement.
Read More
Ci7000 Series
| Ci7500/Ci7520 | Ci7600/Ci7630 | Ci7800/Ci7830 | Ci7860 | |
|---|---|---|---|---|
| Inter-Instrument Agreement (Max Avg DE*) | 0.15 | 0.15 | 0.08 | 0.06 |
| White Repeatability (RMS DE*) | 0.03 | 0.03 | 0.01 | 0.01 |
| Photometric Resolution | 0.01% | 0.01% | 0.001% | 0.001% |
| Spectral Range | 360-750nm | 360-750nm | 360-780nm | 360-780nm |
| Standard Reflectance Apertures Plates | 10, 25mm | 6, 10, 25mm | 6, 10, 17, 25mm | 6, 10, 17, 25mm |
| Optional Reflectance Aperture Plates | 3.5, 6, 17mm1 | 3.5 and 17mm | 3.5mm | 3.5mm |
| Standard Transmission Apertures | N/A | 6, 10, 25mm2 | 6, 10, 17, 25mm3 | 6, 10, 17, 25mm |
| UV filters available (nm) | 400 | 400, 420, 460 | 400, 420, 460 | 400, 420, 460 |
| Wavelength intervals | 10nm* 20nm | 10nm* 20nm 5nm | 10nm* 20nm 5nm | 10nm* 20nm 5nm |
| Instrument Temperature / Humidity Sensors | ✓ | ✓ | ✓ | ✓ |
What’s Included
| Ci7500 / Ci7600 / Ci7630 / Ci7800 / Ci7830 / Ci7860 |
| Instrument with white calibration standard, black trap, green standard, UV calibration standard, aperture plates, manual (CD), AC adapter, and USB cable. |
Industry Standards
Ci7500 / Ci7600 / Ci7630 / Ci7800 / Ci7830 / Ci7860
USA and Canada: Standard for Safety Electrical Equipment For Measurement, Control, and Laboratory Use; UL 61010-1, Ed:3; CAN/CSAC22.2 No.61010-1
EU and International: Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use: 2014/35/EU (LVD) – IEC/EN 61010-1 Issued:2010/06/10 Ed:3; Electrical equipment for measurement, control and laboratory use - EMC requirements: 2014/30/EU (EMC) – IEC/EN61326-1:2012/13
Measuring Reflectance: CIE No. 15, ASTM E1164, DIN 5033 Teil 7, JIS Z 8722, ISO 7724/1
Ci7600 / Ci7800 / Ci7860
Industry Standards Measuring Haze: ASTM D1003
